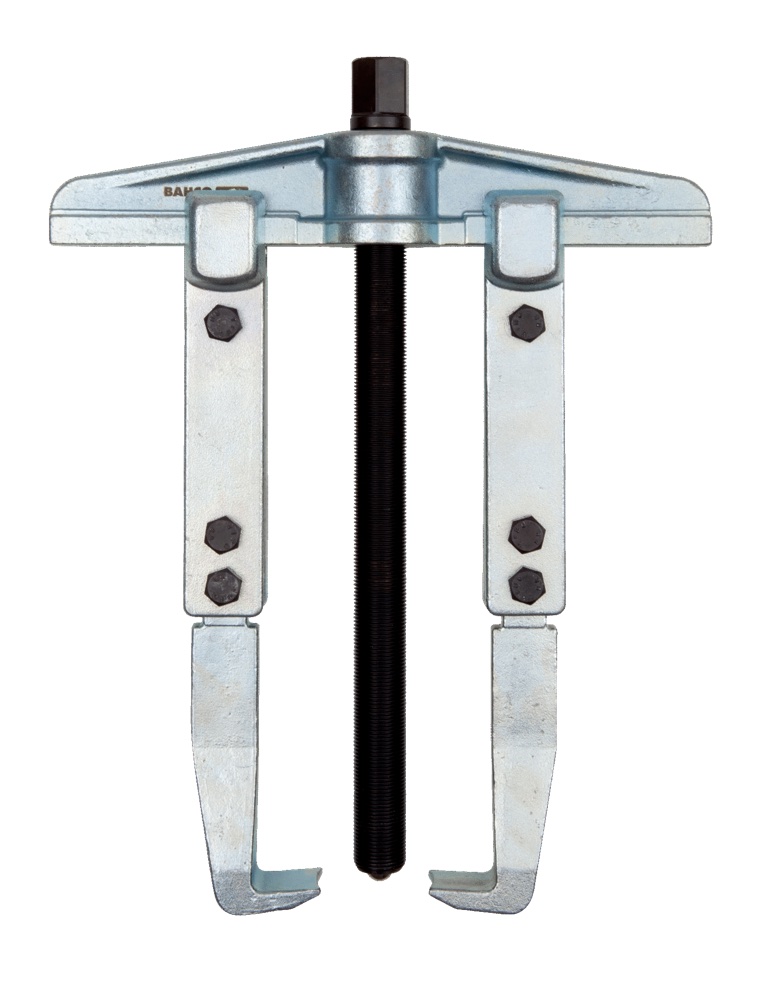

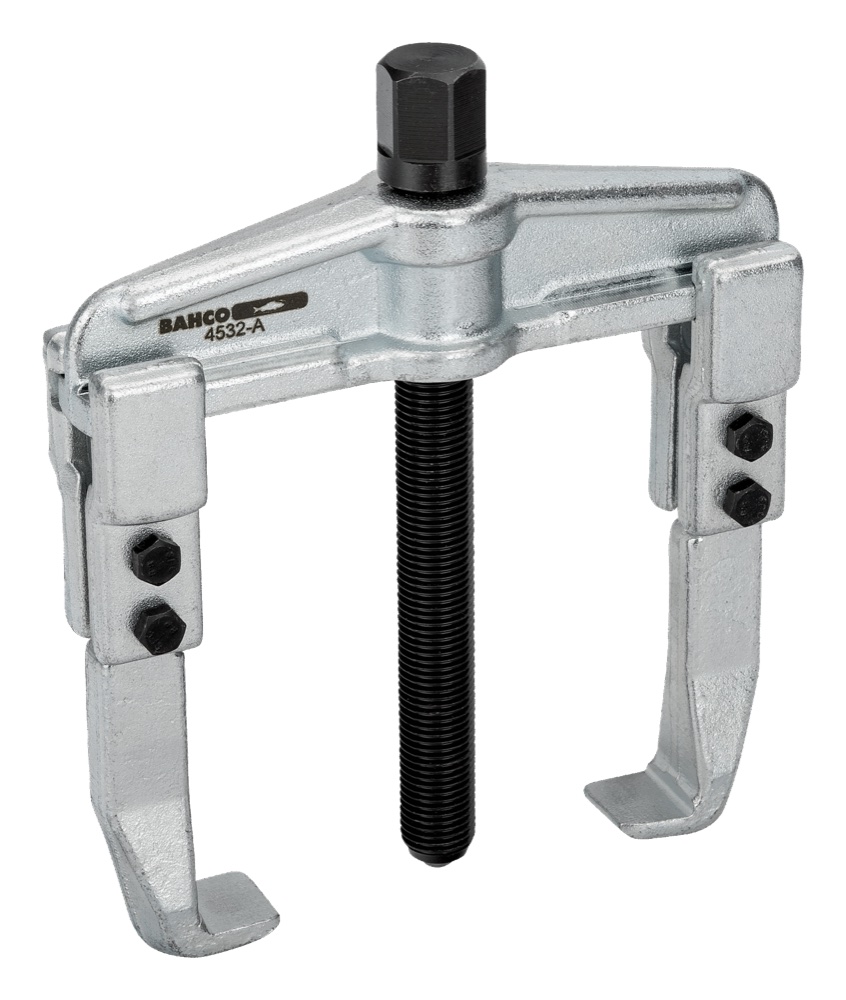

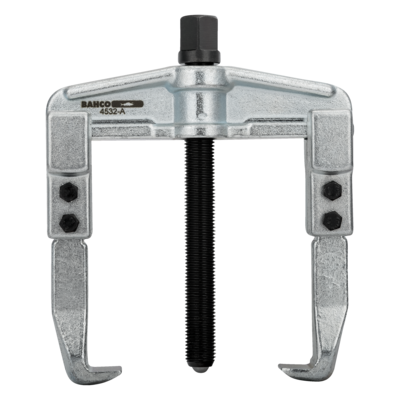

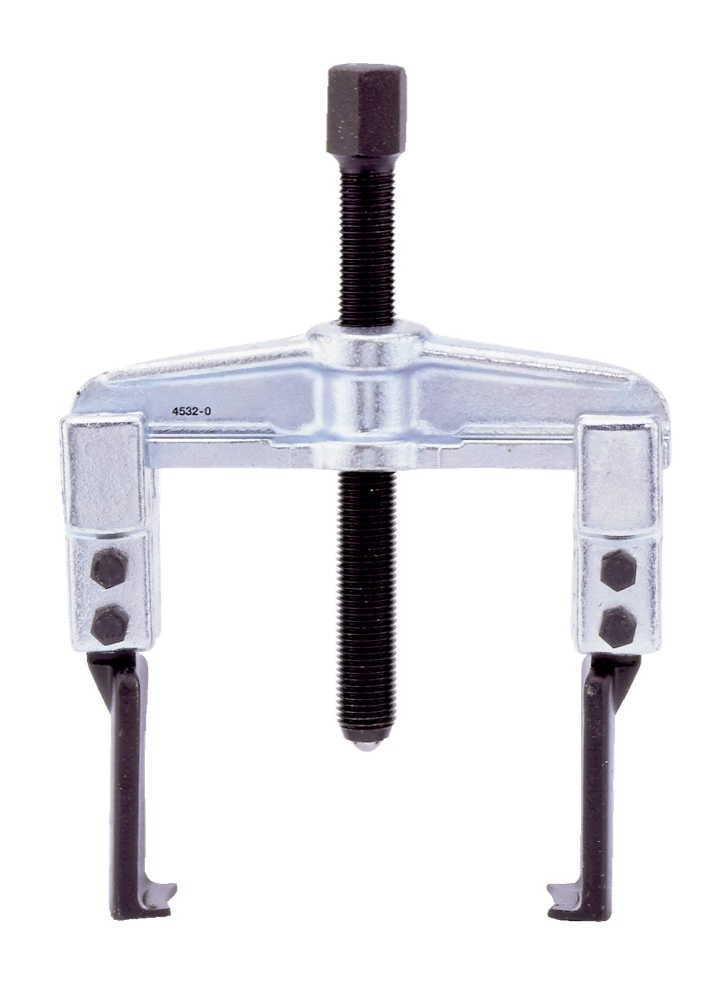

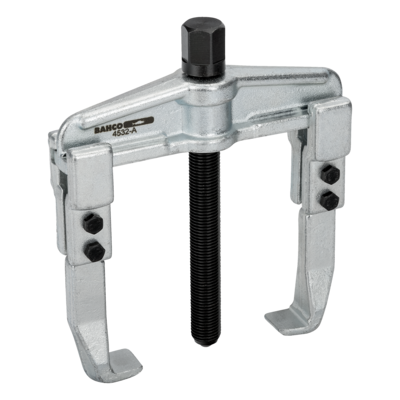

Name: UNIV. TWO-ARM Puller
Brand: BAHCO
SKU: 4532-H

正在載入商品資料…

4532-H

2-Arm Universal Puller with Induction Hardened Spindle and Galvanized Finish 170-640 mm 225 mm

UNIV. TWO-ARM Puller

BAHCO

Universal two-arm pullers
Made of special steel
Galvanised finish
By reversing the arms, the extractor can be used internally or externally
Strong design with large claw surfaces
Body, arms and links are drop forged
Wear-resistant, induction hardened spindles starting in size C
4532K Pair of spare arms
4532LK Pair of long spare arms
4532/S Spare spindle
Large claw surfaces offer many advantages for careful and quick removal of pulleys, gears and ball bearings
Externally-internally reversible by relocating arms

型號	Width	Height	Width 2	Maximum loading capacity	Maximum loading capacity	Working width claw	Thickness claw	Length claw	Width claw	Spare spindle type & size	Hexagon size	Weight, g
4532-H	170-640 mm	225 mm	260-715 mm	18 to	180 kN	10 mm	33 mm	55 mm	50 mm	G 1"x11x305 mm	36 mm	23000 g

型號	Width	Height	Width 2	Maximum loading capacity	Working width claw	Thickness claw	Length claw	價格
4532-A	25-80 mm	100 mm	70-130 mm	45 kN	3 mm	13 mm	25 mm	價格請洽詢
4532-AL	25-80 mm	200 mm	70-130 mm	45 kN	3 mm	13 mm	25 mm	價格請洽詢
4532-B	25-130 mm	100 mm	80-180 mm	45 kN	3 mm	13 mm	25 mm	價格請洽詢
4532-BL	25-130 mm	200 mm	80-180 mm	45 kN	3 mm	13 mm	25 mm	價格請洽詢
4532-C	50-160 mm	150 mm	105-220 mm	65 kN	4 mm	16 mm	35 mm	價格請洽詢
4532-CL	50-160 mm	300 mm	105-220 mm	65 kN	4 mm	16 mm	35 mm	價格請洽詢
4532-D	60-200 mm	150 mm	120-270 mm	65 kN	4 mm	16 mm	35 mm	價格請洽詢
4532-E	80-250 mm	200 mm	160-330 mm	110 kN	5 mm	25 mm	54 mm	價格請洽詢
4532-F	80-350 mm	200 mm	160-420 mm	110 kN	5 mm	25 mm	54 mm	價格請洽詢
4532-G	110-520 mm	200 mm	195-600 mm	130 kN	5 mm	25 mm	54 mm	價格請洽詢
4532-G-SO	110-520 mm	300 mm	195-600 mm	130 kN	5 mm	25 mm	54 mm	價格請洽詢
4532-H本商品	170-640 mm	225 mm	260-715 mm	180 kN	10 mm	33 mm	55 mm	價格請洽詢
