Name: UNIV. TWO-ARM Puller
Brand: BAHCO
SKU: 4532-0

正在載入商品資料…

4532-0

2-Arm Universal Puller with Galvanized Finish 20-90 mm

UNIV. TWO-ARM Puller

BAHCO

Extractor: two arms
Special steel material
Galvanised finish
By reversing the arms, the extractor can be used internally or externally
Claw is milled to a slender and pointed form for easy access in confined spaces, ideal for use in the automotive industry
Arms and yokes are drop-forged
Legs always grip parallel to each other
Leg tip in gunmetal finish is flat, leg body is narrow
4532-0/B Spare body

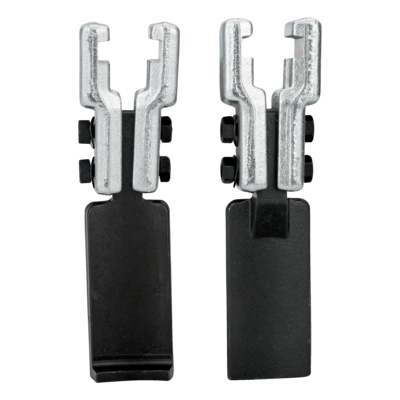

4532K0 Pair of spare arms
4532-OAB/S Spare spindle

型號	Width	Height	Width 2	Maximum loading capacity	Maximum loading capacity	Working width claw	Thickness claw	Length claw	Width claw	Spare spindle type & size	Hexagon size	Weight, g
4532-0	20-90 mm	100 mm	70-130 mm	4.5 to	45 kN	3.6 mm	6 mm	13 mm	27 mm	M14x1.5x135 mm	17 mm	960 g

型號	Width	Height	Width 2	Maximum loading capacity	Working width claw	Thickness claw	Length claw	價格
4532-0本商品	20-90 mm	100 mm	70-130 mm	45 kN	3.6 mm	6 mm	13 mm	價格請洽詢
4532-A	25-80 mm	100 mm	70-130 mm	45 kN	3 mm	13 mm	25 mm	價格請洽詢
4532-AL	25-80 mm	200 mm	70-130 mm	45 kN	3 mm	13 mm	25 mm	價格請洽詢
4532-B	25-130 mm	100 mm	80-180 mm	45 kN	3 mm	13 mm	25 mm	價格請洽詢
4532-BL	25-130 mm	200 mm	80-180 mm	45 kN	3 mm	13 mm	25 mm	價格請洽詢
4532-C	50-160 mm	150 mm	105-220 mm	65 kN	4 mm	16 mm	35 mm	價格請洽詢
4532-CL	50-160 mm	300 mm	105-220 mm	65 kN	4 mm	16 mm	35 mm	價格請洽詢
4532-D	60-200 mm	150 mm	120-270 mm	65 kN	4 mm	16 mm	35 mm	價格請洽詢
4532-E	80-250 mm	200 mm	160-330 mm	110 kN	5 mm	25 mm	54 mm	價格請洽詢
4532-F	80-350 mm	200 mm	160-420 mm	110 kN	5 mm	25 mm	54 mm	價格請洽詢
4532-G	110-520 mm	200 mm	195-600 mm	130 kN	5 mm	25 mm	54 mm	價格請洽詢
4532-G-SO	110-520 mm	300 mm	195-600 mm	130 kN	5 mm	25 mm	54 mm	價格請洽詢
4532-H	170-640 mm	225 mm	260-715 mm	180 kN	10 mm	33 mm	55 mm	價格請洽詢
