Name: BAHCO 20-100Nm 雙刻度可調扭力扳手
Brand: BAHCO
SKU: 74WS-100

正在載入商品資料…

74WS-100

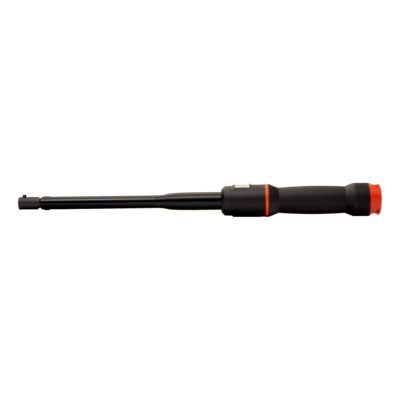

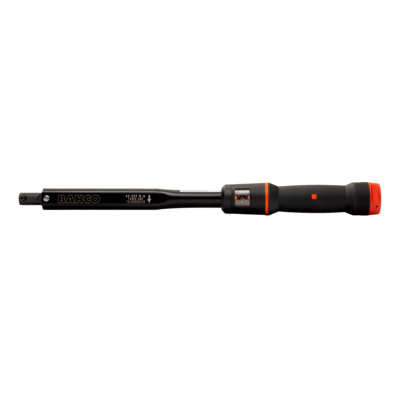

Mechanical Adjustable Window Torque Click Wrench with Spigot Interchangeable Head 20 N.m-100 N.m

BAHCO 20-100Nm 雙刻度可調扭力扳手

BAHCO

Durable, reliable and accurate mechanism
Fast scale adjustment reducing the effort required to adjust
Large dual scale in N·m/ft.lb (15 and 25 N·m wrench sizes in N·m/in.lb)
Range covering from 3 and 300 N·m/27 in.lb - 220 ft.lb torque values
Can be used clockwise or anticlockwise by turning the wrench over
Accurate to ±3% of reading which exceeds the requirements of ISO6789-1:2017
Clicking system triggers a tactile and audible signal

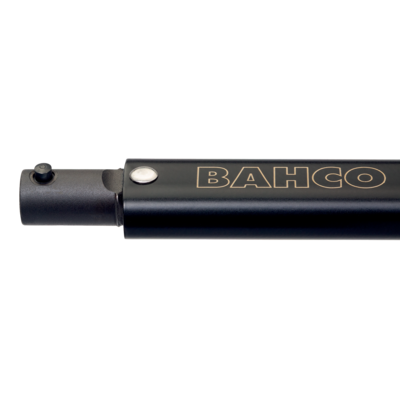

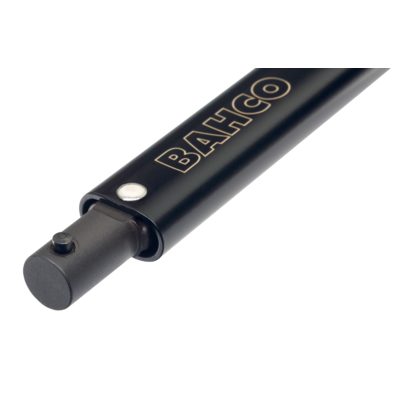

16 mm spigot interchangeable head allowing CW and ACW operations
Handle centre or calibration force point marked on handle

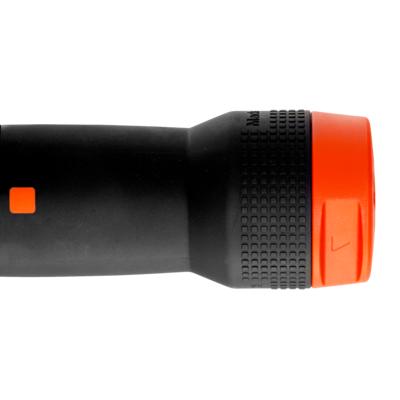

Lock/unlock knob with blue ring inside to warn the operator the wrench is unlocked
In a semi-transparent square tube with eurohole hanger
All wrenches come with a factory calibration certificate according to ISO 6789-2:2017

型號	Torque range	Torque range	Spigot	Scale	Scale	Total Length	Distance screw end	Calibration length	Head height	Weight (Kg)
74WS-100	20-100 N·m	15-75 lbf·ft	16 mm	1 N·m	1 lbf·ft	363 mm	356 mm	269 mm	388 mm	0.700 kg

型號	Torque range	Spigot	Scale	Total Length	Distance screw end	Calibration length	Head height	價格
74WS-100本商品	15-75 lbf·ft	16 mm	1 lbf·ft	363 mm	356 mm	269 mm	388 mm	價格請洽詢
74WS-15	3-15 N·m	16 mm	2 lbf·in	223 mm	216 mm	148 mm	248 mm	價格請洽詢
74WS-200	30-150 lbf·ft	16 mm	2 lbf·ft	445 mm	438 mm	351 mm	470 mm	價格請洽詢
74WS-25	5-25 N·m	16 mm	2 lbf·in	223 mm	216 mm	148 mm	248 mm	價格請洽詢
74WS-300	45-220 lbf·ft	16 mm	2 lbf·ft	569 mm	563 mm	476 mm	595 mm	價格請洽詢
74WS-50	7.5-37.5 lbf·ft	16 mm	0.5 lbf·ft	322 mm	316 mm	229 mm	348 mm	價格請洽詢
