K9598H

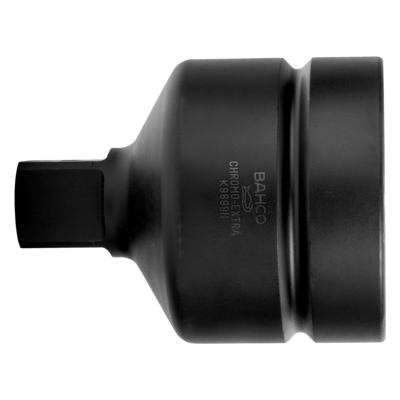

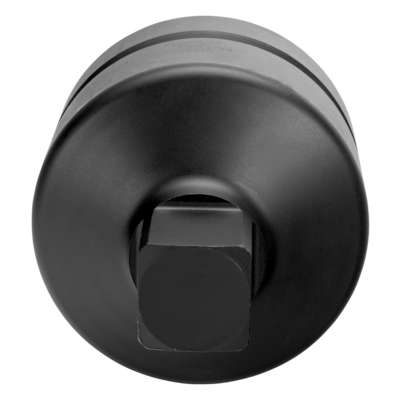

1-1/2" to 1" Square Drive Adaptor with Phosphate Finish 105 mm
POWER SOCKET ADAPTOR 1,5" 1"
BAHCO
NT$5,410含稅 · 原廠正品
可訂購· 原廠調貨 · 交期洽 LINE
數量
原廠正品台灣官方授權代理
新北現貨倉48 小時台灣出貨
LINE 技術諮詢平日 09:00–18:00
QUICKBUYTOOLS · TAIWAN AUTHORIZED
產品特色PRODUCT DETAILS · 原廠資料
- High-performance alloy steel
- Square female size: 1-1/2", 2-1/2"
- Square male size: 1", 2-1/2", 1-1/2"
- Phosphate finish
- For maximum safety use clamping springs
- With through-hole
- D2 = outside diameter of the female end
- Warning: torque applied should be limited to the smallest drive
- Drive standard: DIN 3121, ISO 1174
- Standards: DIN 3129, ISO 2725
尺寸示意圖DIMENSIONS · 原廠線稿
| 型號 | Male square drive | Female square width | Total length | Outside diameter of female end | Clamping spring | Weight, g |
|---|---|---|---|---|---|---|
| K9598H | 1 | 1 1/2 | 105 mm | 86 mm | K560F-8 | 2300 g |
詳細規格SPECIFICATIONS
| 規格項目 | 規格值 |
|---|---|
| 商品編號 | K9598H |
| 商品名稱 | POWER SOCKET ADAPTOR 1,5" 1" |
| 品牌 | BAHCO |
| 主題分類 | 電動工具配件 |
| 狀態 | 可訂購 · 原廠調貨 · 交期洽 LINE |
| 零售價（含稅） | NT$5,410 |
