Name: POWER SOCKET 1 INCH
Brand: BAHCO
SKU: K9506M-27

正在載入商品資料…

K9506M-27

1" Square Drive Deep Impact Socket with 27 mm Hex Profile and Phosphate Finish

POWER SOCKET 1 INCH

BAHCO

To be used with machines
For maximum safety use clamping springs
Phosphate finish
High-performance alloy steel
Dynamic-Drive™ Profile to protect nuts, screws and tools from unnecessary wear and damage

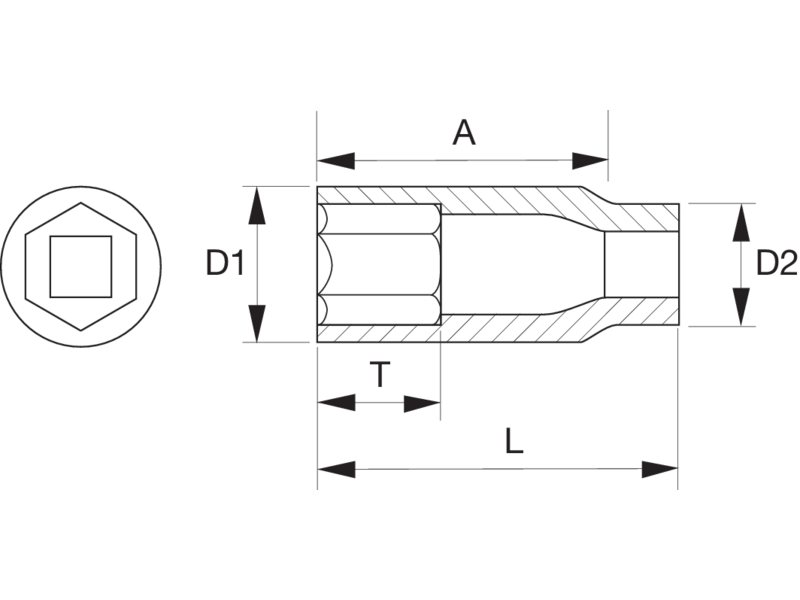

T = depth of female hexagon
Drive standard: DIN 3121-H 25, ISO 1174
Standards: DIN 3129, ISO 2725

型號	Size	Length L	Depth	Socket width	Width square drive	Depth female hexagon drive	Clamping spring	Weight, g
K9506M-27	27 mm	100 mm	76 mm	46 mm	54 mm	28 mm	K560F-7	1000 g

型號	Size	Length L	Depth	Socket width	Width square drive	Depth female hexagon drive	Clamping spring	價格
K9506M-22	22 mm	110 mm	76 mm	40 mm	54 mm	25 mm	K560F-7	價格請洽詢
K9506M-24	24 mm	100 mm	76 mm	42 mm	54 mm	25 mm	K560F-7	價格請洽詢
K9506M-27本商品	27 mm	100 mm	76 mm	46 mm	54 mm	28 mm	K560F-7	價格請洽詢
K9506M-30	30 mm	100 mm	76 mm	49.5 mm	54 mm	30 mm	K560F-7	價格請洽詢
K9506M-32	32 mm	100 mm	76 mm	52 mm	54 mm	30 mm	K560F-7	價格請洽詢
K9506M-33	33 mm	100 mm	76 mm	53 mm	54 mm	30 mm	K560F-7	價格請洽詢
K9506M-34	34 mm	100 mm	34 mm	53.5 mm	54 mm	35 mm	K560F-7	價格請洽詢
K9506M-36	36 mm	100 mm	76 mm	57 mm	54 mm	35 mm	K560F-7	價格請洽詢
K9506M-38	38 mm	100 mm	76 mm	59.5 mm	54 mm	38 mm	K560F-7	價格請洽詢
K9506M-41	41 mm	100 mm	76 mm	63 mm	54 mm	38 mm	K560F-7	價格請洽詢
K9506M-46	46 mm	100 mm	76 mm	69.5 mm	54 mm	38 mm	K560F-7	價格請洽詢
K9506M-50	50 mm	100 mm	76 mm	74.5 mm	54 mm	38 mm	K560F-7	價格請洽詢
K9506M-55	55 mm	100 mm	76 mm	81 mm	54 mm	38 mm	K560F-7	價格請洽詢
K9506M-60	60 mm	120 mm	76 mm	87.5 mm	54 mm	43 mm	K560F-7	價格請洽詢
