Name: POWER SOCKET 3/4
Brand: BAHCO
SKU: K8906M-21

正在載入商品資料…

K8906M-21

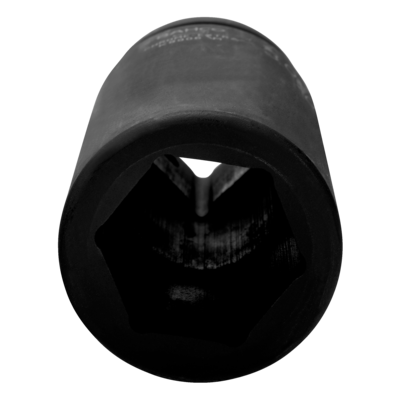

3/4" Square Drive Deep Impact Socket with 21 mm Hex Profile and Phosphate Finish

POWER SOCKET 3/4

BAHCO

To be used with machines
For maximum safety use clamping springs
Phosphate finish
High-performance alloy steel
Dynamic-Drive™ Profile to protect nuts, screws and tools from unnecessary wear and damage
T = depth of female hexagon
Drive standard: DIN 3121-H 20, ISO 1174
Standards: DIN 3129, ISO 2725

型號	Size	Length L	Socket width	Width square drive	Depth female hexagon drive	Clamping spring	Weight, g
K8906M-21	21 mm	100 mm	36.5 mm	44 mm	14 mm	K560F-6	845 g

型號	Size	Length L	Socket width	Width square drive	Depth female hexagon drive	Clamping spring	Weight, g	價格
K8906M-17	17 mm	100 mm	30 mm	44 mm	13 mm	K560F-6	910 g	價格請洽詢
K8906M-19	19 mm	95 mm	32.5 mm	44 mm	14 mm	K560F-6	580 g	價格請洽詢
K8906M-21本商品	21 mm	100 mm	36.5 mm	44 mm	14 mm	K560F-6	845 g	價格請洽詢
K8906M-22	22 mm	95 mm	35 mm	42 mm	16 mm	K560F-6	640 g	價格請洽詢
K8906M-24	24 mm	100 mm	39 mm	44 mm	16 mm	K560F-6	700 g	價格請洽詢
K8906M-27	27 mm	100 mm	43 mm	44 mm	18 mm	K560F-6	750 g	價格請洽詢
K8906M-30	30 mm	100 mm	46 mm	44 mm	19 mm	K560F-6	770 g	價格請洽詢
K8906M-32	32 mm	95 mm	49 mm	44 mm	22 mm	K560F-6	825 g	價格請洽詢
K8906M-33	33 mm	95 mm	50.8 mm	44 mm	22 mm	K560F-6	890 g	價格請洽詢
K8906M-34	34 mm	95 mm	50.8 mm	42 mm	22 mm	K560F-6	890 g	價格請洽詢
K8906M-36	36 mm	95 mm	54 mm	44 mm	22 mm	K560F-6	930 g	價格請洽詢
K8906M-41	41 mm	95 mm	60.5 mm	44 mm	24 mm	K560F-6	1100 g	價格請洽詢
K8906M-46	46 mm	95.2 mm	67 mm	44 mm	22.4 mm	K560F-6	1310 g	價格請洽詢
