商品型錄

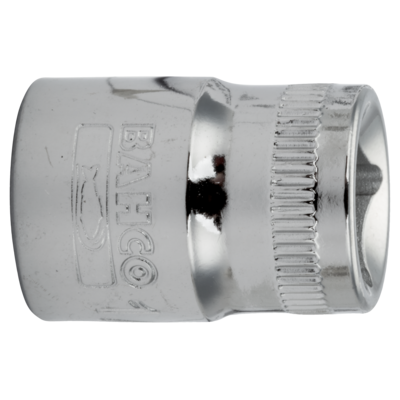

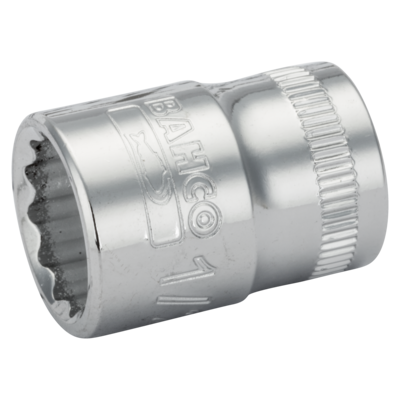

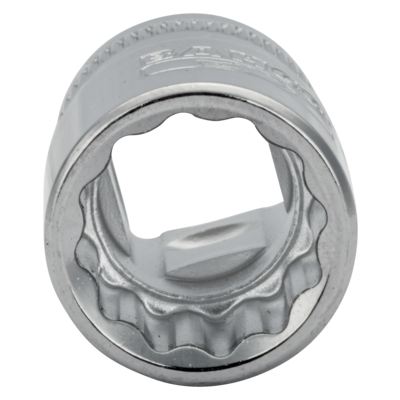

Name: SOCKET 3/8, AEROSPACE
Brand: BAHCO
SKU: A7400DZ-13/16

正在載入商品資料…

A7400DZ-13/16

3/8" Square Drive Socket with 13/16" Bi-Hex Profile

SOCKET 3/8, AEROSPACE

BAHCO

品牌: BAHCO
料號: A7400DZ-13/16
主題分類: 套筒與棘輪
Size: 13/16 in
Length L: 29 mm
Socket width: 27.9 mm
Female square drive width: 24 mm
Depth ball-bearing: 14 mm
Weight, g: 44 g

原廠資料與完整規格 ↓

產品特色PRODUCT DETAILS · 原廠資料

Knurled shank for finger turning of free running fasteners
Applicable to nuts and bolts used in the aerospace industry
Not suitable for machine operation or power tools
Highly polished finish
High-performance alloy steel
Less wear of the fastener thanks to Dynamic-Drive™ profile
Maximum load distribution and torque from the additional flank area
Thin walled for better accessibility
Standards: ISO 2725/1174 and DIN 3124/3120

尺寸示意圖DIMENSIONS · 原廠線稿

型號	Size	Length L	Socket width	Female square drive width	Depth ball-bearing	Weight, g
A7400DZ-13/16	13/16 in	29 mm	27.9 mm	24 mm	14 mm	44 g

詳細規格SPECIFICATIONS

規格項目	規格值
商品編號	A7400DZ-13/16
商品名稱	SOCKET 3/8, AEROSPACE
品牌	BAHCO
主題分類	套筒與棘輪
交期	請洽詢，由客服依採購需求確認
零售價（含稅）	請洽詢

同系列規格比較VARIANTS · 原廠型錄（共 26 款）

型號	Size	Length L	Socket width	Female square drive width	Depth ball-bearing	Weight, g	價格
A7400DZ-1/2	1/2 in	25.5 mm	18.4 mm	17 mm	8.5 mm	22 g	價格請洽詢
A7400DZ-1/4	1/4 in	25.5 mm	10 mm	17 mm	7 mm	10 g	價格請洽詢
A7400DZ-11/16	11/16 in	27 mm	23.9 mm	20 mm	13 mm	30 g	價格請洽詢
A7400DZ-13/16本商品	13/16 in	29 mm	27.9 mm	24 mm	14 mm	44 g	價格請洽詢
A7400DZ-17/32	17/32 in	25.5 mm	19.6 mm	18.4 mm	8.5 mm	23 g	價格請洽詢
A7400DZ-19/32	19/32 in	27 mm	20.9 mm	19 mm	13 mm	26 g	價格請洽詢
A7400DZ-3/4	3/4 in	29 mm	25.6 mm	21 mm	14 mm	40 g	價格請洽詢
A7400DZ-3/8	3/8 in	25.5 mm	14.3 mm	17 mm	8 mm	19 g	價格請洽詢
A7400DZ-5/16	5/16 in	25.5 mm	11.8 mm	17 mm	8 mm	16 g	價格請洽詢
A7400DZ-5/8	5/8 in	27 mm	22 mm	20 mm	13 mm	28 g	價格請洽詢
A7400DZ-7/16	7/16 in	25.5 mm	16 mm	17 mm	8 mm	21 g	價格請洽詢
A7400DZ-7/8	7/8 in	31 mm	30 mm	26 mm	16 mm	60 g	價格請洽詢
A7400DZ-9/16	9/16 in	27 mm	20.2 mm	18.4 mm	13 mm	25 g	價格請洽詢
SBA7400DZ-1/2	1/2 in	25.5 mm	18.4 mm	17 mm	8.5 mm	22 g	價格請洽詢
SBA7400DZ-1/4	1/4 in	25.5 mm	10 mm	17 mm	7 mm	15 g	價格請洽詢
SBA7400DZ-11/16	11/16 in	27 mm	23.9 mm	20 mm	13 mm	30 g	價格請洽詢
SBA7400DZ-13/16	13/16 in	29 mm	27.9 mm	24 mm	14 mm	44 g	價格請洽詢
SBA7400DZ-17/32	17/32 in	25.5 mm	19.6 mm	18.4 mm	8.5 mm	23 g	價格請洽詢
SBA7400DZ-19/32	19/32 in	27 mm	20.9 mm	19 mm	13 mm	26 g	價格請洽詢
SBA7400DZ-3/4	3/4 in	29 mm	25.6 mm	21 mm	14 mm	40 g	價格請洽詢
SBA7400DZ-3/8	3/8 in	25.5 mm	14.3 mm	17 mm	8 mm	19 g	價格請洽詢
SBA7400DZ-5/16	5/16 in	25.5 mm	11.8 mm	17 mm	8 mm	16 g	價格請洽詢
SBA7400DZ-5/8	5/8 in	27 mm	22 mm	20 mm	13 mm	28 g	價格請洽詢
SBA7400DZ-7/16	7/16 in	25.5 mm	16 mm	17 mm	8 mm	21 g	價格請洽詢
SBA7400DZ-7/8	7/8 in	31 mm	30 mm	26 mm	16 mm	50 g	價格請洽詢
SBA7400DZ-9/16	9/16 in	27 mm	20.2 mm	18.4 mm	13 mm	25 g	價格請洽詢

相關商品RELATED · 同主題：套筒與棘輪

填入所需數量後，一次加入詢價清單。交期與專案價格請洽詢。

商品型錄與採購數量
料號	品名	品牌	主題分類	價格	數量

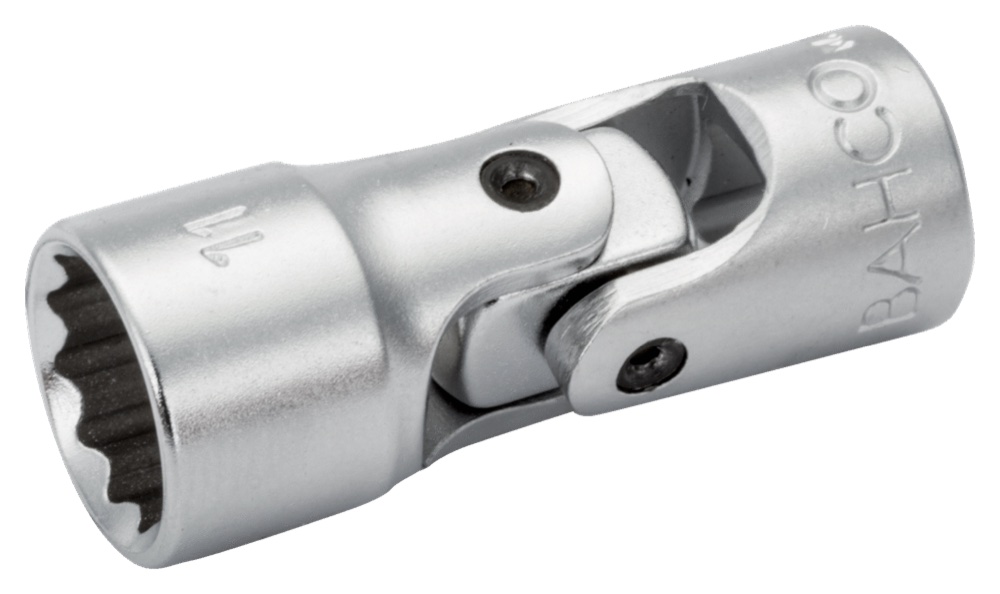

A6710DM-14	SOCKET 1/4", AEROSPACE	BAHCO	套筒與棘輪	價格請洽詢	A6710DM-14 數量
A6710DM-13	SOCKET 1/4", AEROSPACE	BAHCO	套筒與棘輪	價格請洽詢	A6710DM-13 數量
A6710DM-11	SOCKET 1/4", AEROSPACE	BAHCO	套筒與棘輪	價格請洽詢	A6710DM-11 數量
A6710DM-10	SOCKET 1/4", AEROSPACE	BAHCO	套筒與棘輪	價格請洽詢	A6710DM-10 數量

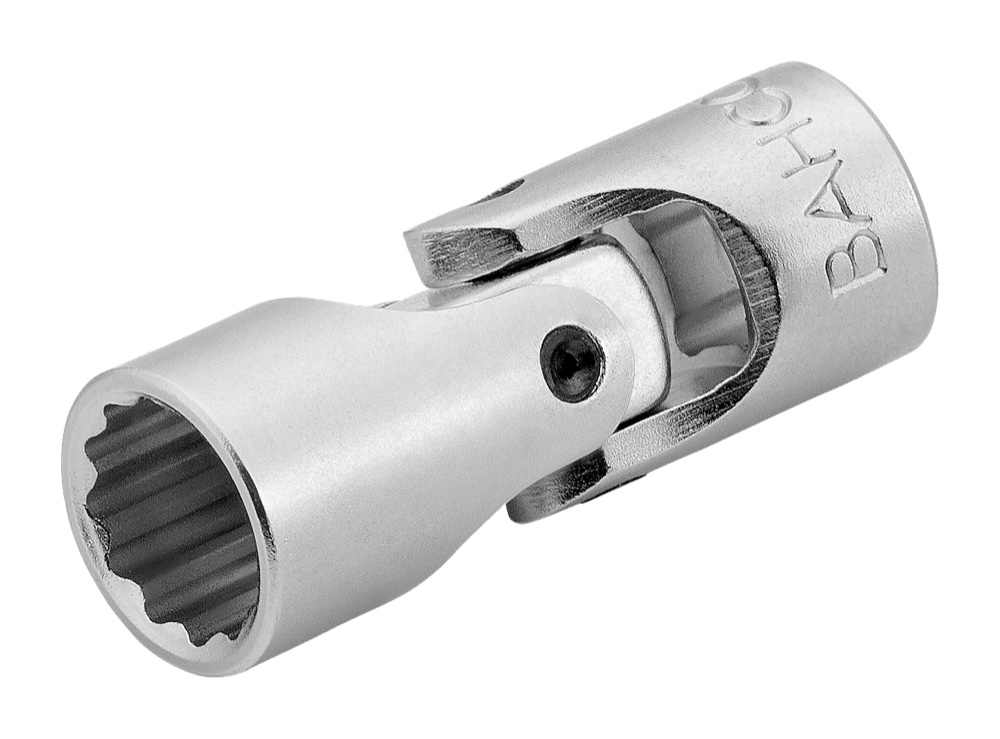

A6710DZ-5/16	SOCKET 1/4, AEROSPACE	BAHCO	套筒與棘輪	價格請洽詢	A6710DZ-5/16 數量
