Name: SOCKET 1/4", HEX, AEROSPACE
Brand: BAHCO
SKU: A6800SM-9

正在載入商品資料…

A6800SM-9

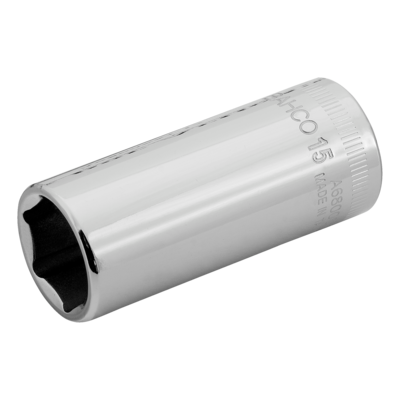

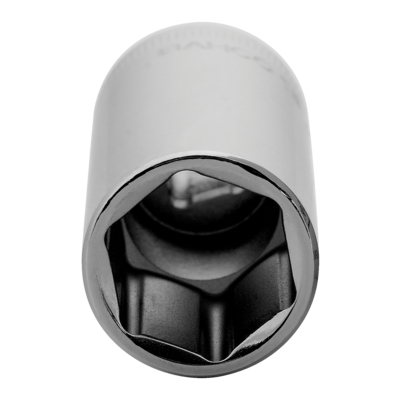

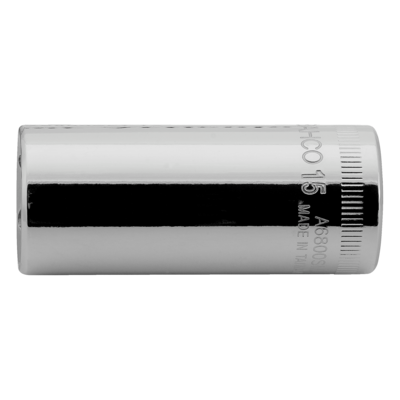

1/4" Square Drive Deep Socket with 9 mm Hex Profile

SOCKET 1/4", HEX, AEROSPACE

BAHCO

1/4" deep length sockets hexagonal
Metric sizes, thin-walled
Sockets are applicable to nuts and bolts used in the aerospace industry
Not suitable for machine operation
High-performance alloy steel
Knurled area for better grip
Applicable to nuts and bolts used in the aerospace industry
Dynamic-Drive™ Profile to protect the nuts, screws and tools from unnecessary wear and damage
Standards: ISO 2725-1/1174-1, DIN 3120

型號	Size	Length L	Socket width	Female square drive width	Depth ball-bearing	Weight, g
A6800SM-9	9 mm	50.6 mm	12.7 mm	12.1 mm	18.9 mm	30 g

型號	Size	Length L	Socket width	Female square drive width	Depth ball-bearing	Weight, g	價格
A6800SM-10	10 mm	50.6 mm	14 mm	12.1 mm	22.4 mm	33 g	價格請洽詢
A6800SM-11	11 mm	50.6 mm	15.4 mm	13.1 mm	22.4 mm	42 g	價格請洽詢
A6800SM-12	12 mm	50.6 mm	16.5 mm	14 mm	20.8 mm	33 g	價格請洽詢
A6800SM-13	13 mm	50.6 mm	17.6 mm	15 mm	21.9 mm	53 g	價格請洽詢
A6800SM-14	14 mm	50.6 mm	18.8 mm	16 mm	24.5 mm	58 g	價格請洽詢
A6800SM-15	15 mm	50.6 mm	18.8 mm	16 mm	24.5 mm	60 g	價格請洽詢
A6800SM-4	4 mm	50.6 mm	6.7 mm	12.1 mm	8 mm	16 g	價格請洽詢
A6800SM-4.5	4.5 mm	50.6 mm	6.7 mm	12.1 mm	8 mm	16 g	價格請洽詢
A6800SM-5	5 mm	50.6 mm	7.7 mm	12.1 mm	9.2 mm	20 g	價格請洽詢
A6800SM-6	6 mm	50.6 mm	9.3 mm	12.1 mm	12 mm	21 g	價格請洽詢
A6800SM-7	7 mm	50.6 mm	10.5 mm	12.1 mm	18.2 mm	25 g	價格請洽詢
A6800SM-8	8 mm	50.6 mm	11.5 mm	12.1 mm	18.4 mm	25 g	價格請洽詢
A6800SM-9本商品	9 mm	50.6 mm	12.7 mm	12.1 mm	18.9 mm	30 g	價格請洽詢
